FLOW MEASUREMENT STRUCTURES (COMING SOON)
The most secure, easy to install, reliable, and accurate telemetry system.

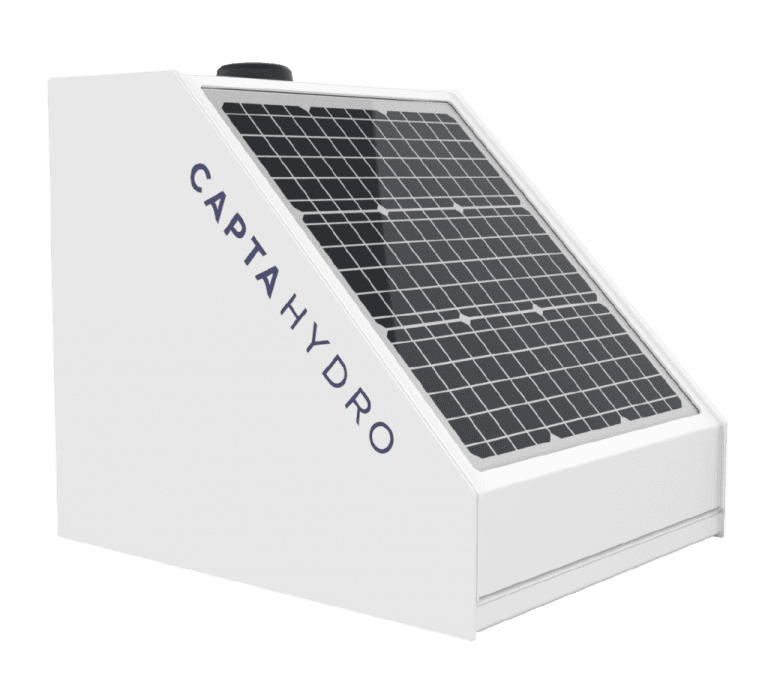

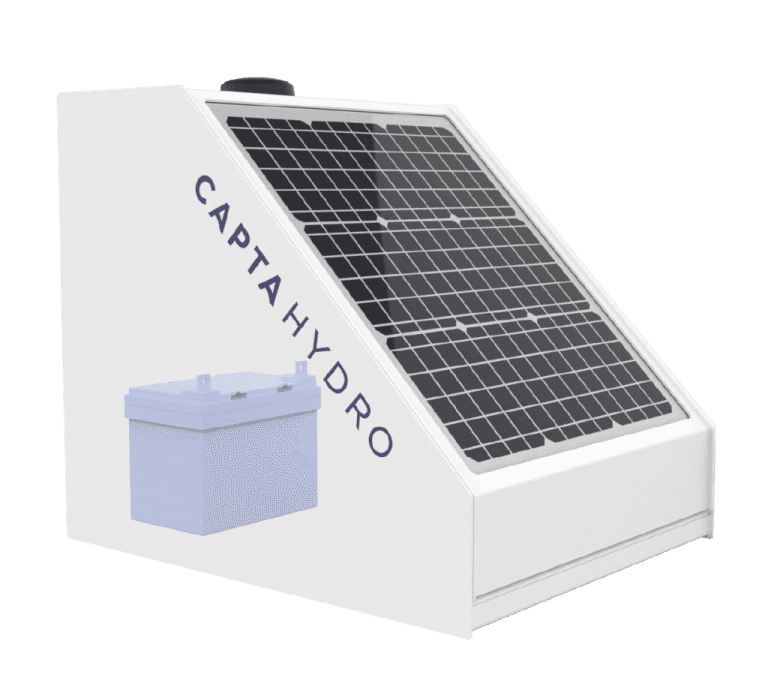

Support and impact-resistant cover for solar panel
Anchor bolts with over 20 tons of resistance
3mm thick steel protective casing
Interior reinforcement with 6mm thick anti-abrasive steel, resistant to tools
Drill-resistant security lock
*More than 99% of the time, the equipment will be functioning properly.
Temperature-compensated ultrasonic level sensors; with 2m, 4m, and 6m range and up to 0.25% accuracy relative to its total range.
(Optional) Temperature-independent radar level sensors with a 7m range and ±2mm accuracy.
Doppler sensor submerged at the bottom of the channel with redundant level sensors, such as hydrostatic and ultrasonic pressure sensors.
(Optional) Ideal for partially filled pipes transitioning from open channel flow to pressurized flow, or channels without a flow measurement section with no sediment accumulation.
Radar sensor for contactless surface velocity measurement with water.
(Optional) Suitable for measurement without a flow section, allowing for flow estimation.
"Capta Hydro's telemetry equipment has been key to having reliable data with more security and anti-vandalism measures than we ever thought possible"
